What are the building code requirements for concrete steps?

Building code requirements for concrete steps in Newcastle follow the National Construction Code (NCC) 2022 and Australian Standards (AS 1657, AS 3600, AS 4586). Getting these right isn’t optional—it’s what separates safe, compliant steps from ones that fail inspection or create liability issues down the track.
Dimensional Standards:
- Riser height: 150-190mm (residential), with maximum ±5mm variation between steps
- Tread depth: Minimum 240mm (though we recommend 300mm for comfort)
- A maximum of 18 risers per flight is required before a landing.
- Stair pitch: Between 26.5° and 45°
Structural Requirements:
- Concrete strength: Minimum 20-25 MPa (N25/N32 for outdoor exposure)
- Steel reinforcement (mesh or rebar) with 40mm concrete cover
- Footings minimum 1066mm deep for outdoor steps to prevent movement in reactive soils
Safety Compliance:
- Slip resistance: P4 or R11/R12 rating for outdoor steps
- Handrails: Mandatory for 2+ risers, height 865-1000mm from nosing
- Balustrades: 1000mm minimum height with 125mm maximum gap to prevent child access

Concrete Step Applications in Newcastle
Step Design & Safety Compliance Requirements
Building Code Dimensional Standards: Riser height between 150-190mm with consistent dimensions (±5mm variation max), tread depth minimum 240mm (300mm recommended for comfort), maximum 18 risers per flight before landing is required, stair pitch angle between 26.5° and 45°, and adequate drainage preventing water pooling.
Structural Requirements & Engineer Specifications: Concrete strength minimum 20-25 MPa (N25/N32) for outdoor exposure, steel reinforcement (mesh SL62 or #3/#4 rebar) ensuring structural integrity, minimum 40mm concrete cover to reinforcement, footings minimum 1066mm deep, preventing shifting in reactive soils, and engineer certification required for significant projects.
Handrail & Balustrade Regulations: Handrails mandatory for 2+ risers, height 865-1000mm from nosing, balustrades required for open sides with minimum 1000mm height, maximum 125mm gap preventing child access, slip-resistant nosing with 30% visual contrast meeting accessibility requirements.
Newcastle Council Approval & Inspection Process: Building approval requirements for step construction vary across the City of Newcastle, Lake Macquarie, and Maitland. Inspection protocols verify code compliance at multiple stages. Documentation from licensed builders demonstrating compliance with NCC 2022 standards is required for certification and property records.

Concrete Step Finishes & Surface Options

Broom Finish for Maximum Slip Resistance: A textured surface providing excellent slip resistance, ideal for outdoor, exposed steps and high-traffic areas. Practical and cost-effective standard finish, perfect for utility access and service steps. Easy maintenance and long-lasting performance without compromising safety.
Exposed Aggregate for Decorative Appeal: Decorative stone finish with superior traction, stays cool underfoot compared to plain concrete. Complements driveways, paths, and pool surrounds, creating a cohesive property appearance. Available in various stone colours and sizes, matching your existing concrete work.
Stamped Concrete & Bullnose Edge Options: Pattern designs mimicking stone, brick, or slate with a textured slip-resistant surface meeting safety standards. Upscale aesthetic for feature entries and front steps. Bullnose rounded edges create a refined appearance, eliminating sharp corners for safety and visual appeal.
Benefits of Concrete Steps for Newcastle Properties
Durability & Longevity in Coastal Conditions
30+ year lifespan with proper construction and maintenance, superior strength supporting heavy loads and constant traffic. It resists Newcastle’s coastal salt air and UV exposure, withstands temperature fluctuations and weather extremes. No deterioration from termites, rot, or rust.
Low Maintenance Compared to Timber & Metal
No painting, staining, or rot treatment required—simple cleaning with pressure washing. No replacement of deteriorated boards or rusted metal. Minimal repairs over decades of service. Cost savings from eliminated ongoing maintenance add up significantly over the life of your steps.
Safety, Value & Customisation Advantages
Slip-resistant finishes ensure year-round safety, code-compliant construction meeting all regulations. Increased property value from quality permanent improvements. Custom widths, heights, and configurations for any application.




Our Step Construction Process
Site Assessment & Design Planning
Free consultation assessing elevation changes and access requirements, precise measurements ensuring code-compliant dimensions. Design planning incorporating aesthetic preferences, finish options, and handrail requirements. Engineer consultation for complex or large-scale projects.

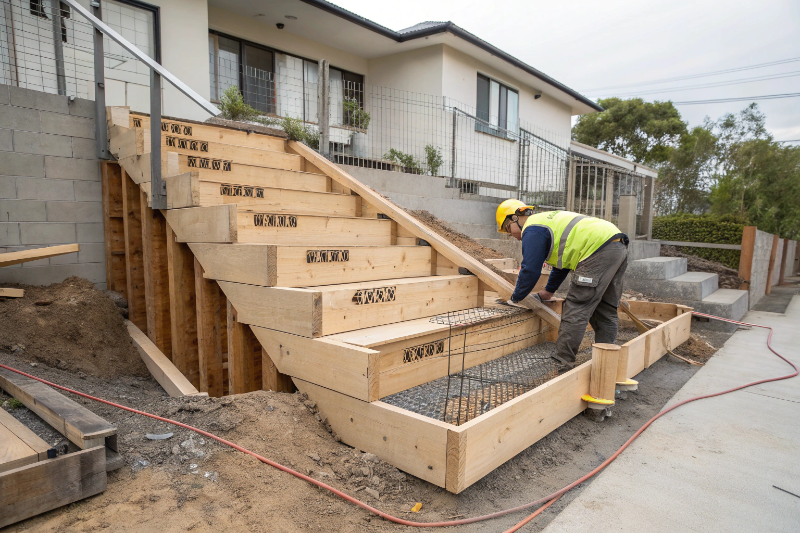

Preparation, Formwork & Reinforcement
Site excavation and compacted base preventing settlement. Precision formwork creates an exact step profile with consistent dimensions. Steel reinforcement installation (mesh or rebar), providing structural strength with proper concrete cover specifications.
Concrete Placement, Finishing & Curing
Quality concrete mix for outdoor exposure (N25/N32), careful placement, and eliminating voids. Precise finishing creating level treads and slip-resistant surface texture. Proper curing protection ensuring strength development, handrail coordination, final inspection and cleanup.
Newcastle Step Construction Expertise & Custom Solutions
Local Terrain & Soil Challenges
Extensive experience with Newcastle’s sloping terrain requires multi-level solutions. Understanding reactive clay soil movement and proper footing depth. Addressing narrow side access common in established Newcastle suburbs, managing significant elevation changes on hillside properties.
Coastal Exposure & Weather Resistance
Selecting weather-resistant finishes for coastal Newcastle locations, and concrete mix design for salt air exposure. Drainage solutions prevent water damage, and UV-resistant finishes maintain appearance. Compliance with the City of Newcastle, Lake Macquarie, and Maitland codes and inspection requirements.
Custom Design Solutions for Unique Properties
Curved steps create elegant entries, wide steps with generous landings for entertaining. Integrated garden bed borders and landscaping, coordinated handrails and balustrades. Lighting provisions for nighttime safety, matching existing concrete finishes for cohesive appearance. Solutions from simple three-step entries to extensive staircases.
Frequently Asked Questions About Concrete Steps in Newcastle
How much do concrete steps cost in Newcastle?
We typically see concrete step projects ranging from $2,500-$8,000 depending on the number of steps, width, finish selection, and site access. Simple three-step front entries with broom finish start around $2,500-$3,500, while extensive staircases with exposed aggregate or stamped finishes and integrated handrails can reach $6,000-$8,000+. Site challenges like narrow side access, significant excavation, or reactive soil conditions requiring deeper footings affect pricing. We provide free site assessments with detailed quotes, so you know exactly what you’re paying before we start.
Do I need council approval for concrete steps?
Yes, most concrete step construction in Newcastle, Lake Macquarie, and Maitland requires building approval, especially for steps connected to your home or exceeding certain heights. Steps over 1 meter high, anything attached to your house structure, or work affecting drainage typically need council approval. We handle the approval process as part of our service, preparing documentation and coordinating inspections. Some minor repairs or like-for-like replacements might not require approval, but we always verify with the council first to keep you compliant.
How long do concrete steps last?
Properly constructed concrete steps last 30-50+ years with minimal maintenance. We’ve seen well-built steps from the 1980s still performing perfectly today. The key is proper construction—correct concrete strength (N25/N32), adequate steel reinforcement, proper footing depth, and appropriate finishes for Newcastle’s coastal conditions. Timber steps might need replacing every 10-15 years, metal steps rust and deteriorate, but concrete keeps going. Annual pressure washing and occasional resealing (for decorative finishes) is all the maintenance you’ll need.
What's the best finish for outdoor steps?
For outdoor steps, we recommend either broom finish or exposed aggregate. Broom finish provides excellent slip resistance at the most economical price point—perfect for utility steps, side access, or areas where appearance isn’t the primary concern. Exposed aggregate offers superior traction while looking more decorative, stays cooler underfoot, and complements most driveways and pool surrounds. Both finishes meet the required P4 or R11/R12 slip ratings. Stamped concrete works for feature entries but costs more. We never compromise slip resistance for appearance—safety comes first.
Can you match the existing concrete on my property?
Yes, we can match existing concrete finishes, colours, and aggregate types to create a cohesive look across your property. If you’ve got an exposed aggregate driveway, we’ll match the stone size and colour for your new steps. For colored or stamped concrete, we bring samples to ensure the match before we pour. Perfect colour matching can be challenging with older concrete that’s weathered, but we get close enough that most people can’t tell where old ends and new begins. Matching finishes creates much better visual flow than mismatched concrete work.
How long does step construction take?
Most residential concrete step projects take 3-5 days from start to finish. Day one covers excavation, formwork, and reinforcement setup. On day two, we pour and finish the concrete. Then we need 3-7 days curing time before you can use the steps (light foot traffic after 3 days, full use after 7 days). Larger projects with multiple flights, extensive excavation, or handrail installation might extend to 7-10 days total. Weather affects timing—we don’t pour in rain or extreme heat. We’ll give you a realistic timeline during your free consultation.
